Device Monitoring

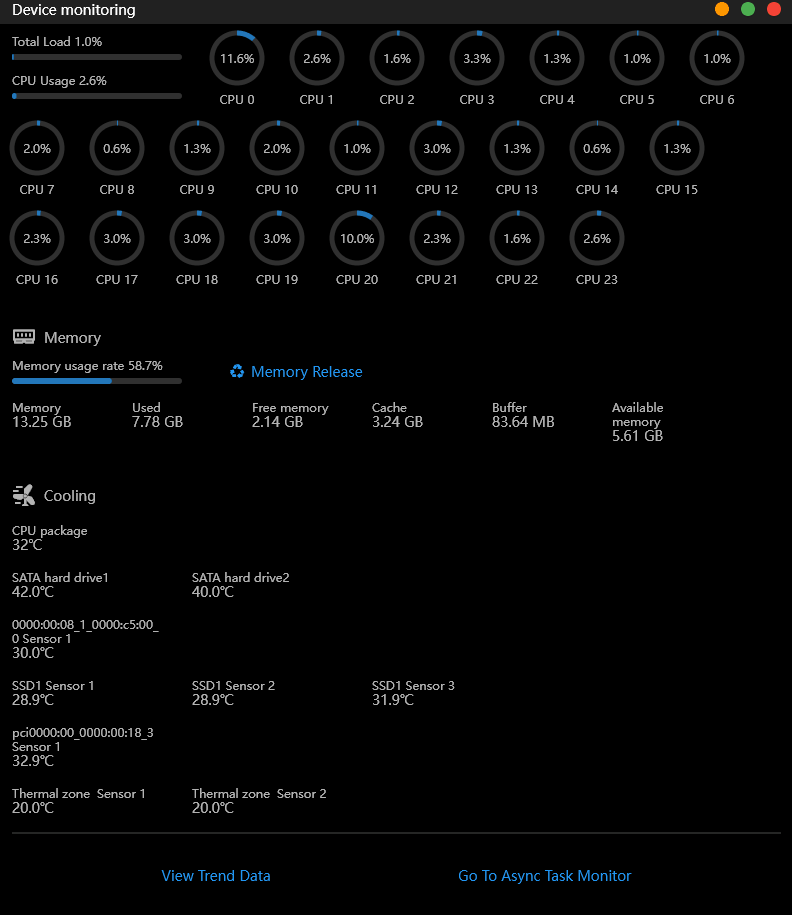

The Device Monitoring utility provides a live overview of the N5 Pro’s system load, memory use and temperatures.
The processor is reported as an AMD Ryzen AI 9 HX PRO 370 with Radeon 890M. The 24 CPU gauges represent its 24 logical processors; the interface’s description of it as a “24 Core” processor is inaccurate because it has 12 physical cores and 24 threads.
The review unit was supplied with a single 16GB ADATA SO-DIMM. I replaced it with a matched pair of 16GB Crucial SO-DIMMs, enabling dual-channel memory operation.
Temperature readings are healthy: the CPU package is at 32°C, the two SATA drives are at 42°C and 40°C, and the SSD sensors range from 28.9°C to 31.9°C. Additional PCIe and thermal-zone sensors are displayed, although several have raw or unclear labels, indicating that the monitoring interface still needs refinement. Links at the bottom open historical trend data and the asynchronous task monitor.
