Memory Benchmarks
Only the HP EliteDesk and the AWOW AK41 support DDR4 RAM. The other machines use the older DDR3 technology.
The most significant differences between DDR3 and DDR4 RAM is higher module density and lower voltage requirements combined with higher data rate transfer speeds. Current generation DDR4 modules start at 2133MHz, with official support for up to DDR4-3200. Modules can be overclocked.
You might expect the EliteDesk and the AK41 to romp home here. That’s true for the HP EliteDesk, whereas the AK41’s performance in this benchmark is lamentable. The reason is simple. The EliteDesk is a dual-channel memory capable system. Make sure you populate both DIMM slots to maximise memory performance. The AK41 is only a single-channel memory capable system, and the RAM cannot be upgraded.

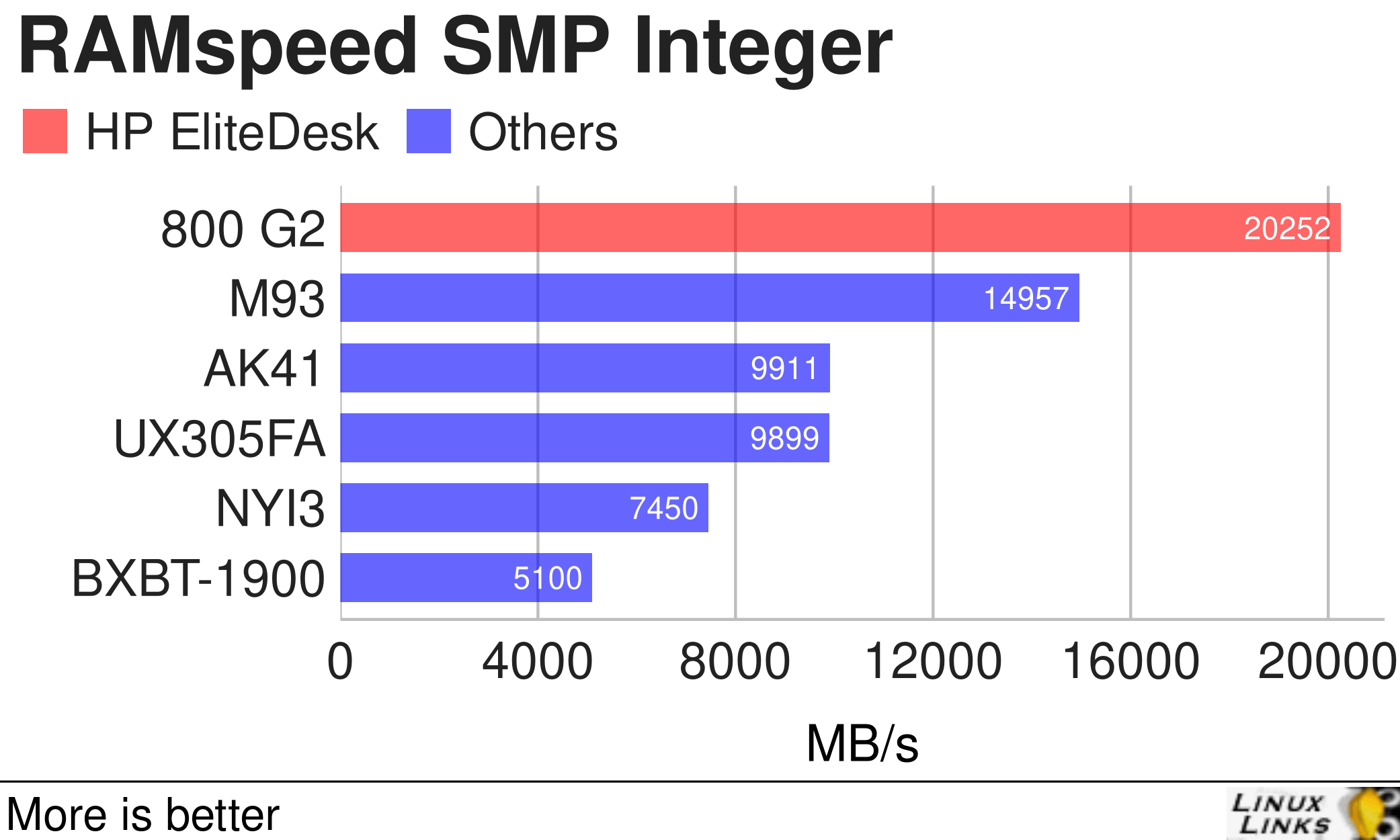

RAMspeed tests the system memory (RAM) performance.
$ phoronix-test-suite benchmark ramspeed
Given the EliteDesk’s dual-channel memory capable system and we have 2 8GB SODIMMS fitted, the machine outperforms the other machines by a country mile! The Lenovo M93 is also a dual-channel memory capable system but uses older DDR3 RAM.
$ phoronix-test-suite benchmark ramspeed

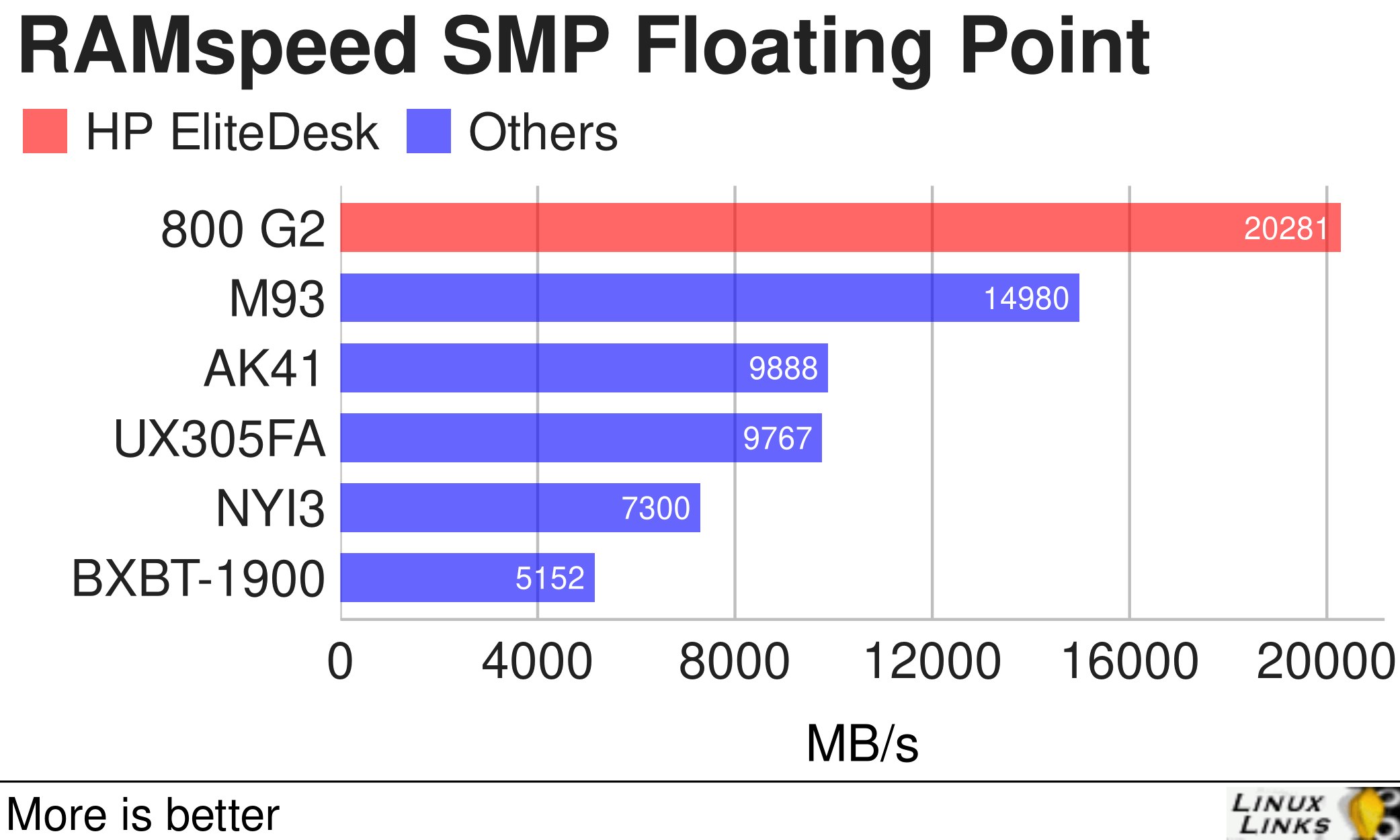

Again, this benchmark tests the system memory (RAM) performance. The HP EliteDesk is the clear winner.
Pages in this article:
Page 1 – Introduction / System
Page 2 – Processor
Page 3 – Memory
Page 4 – Graphics
Page 5 – Disk
Complete list of articles in this series:
| HP EliteDesk 800 G2 Mini Desktop PC | |
|---|---|
| Week 6 | Lightweight gaming on the HP EliteDesk |
| Week 5 | Multiple operating systems running on the HP EliteDesk |
| Week 4 | Hardware graphics acceleration when watching videos in Firefox |
| Week 3 | Multimedia on the HP EliteDesk 800 G2 USFF PC |
| Week 2 | Benchmarking the HP EliteDesk 800 G2 USFF PC with other machines |
| Week 1 | Introduction to the series including wiping Windows and installing Manjaro |
This blog is written on the HP EliteDesk 800 G2 Mini Desktop PC.
This machine was made available by Bargain Hardware. Bargain Hardware retails refurbished servers, workstations, PCs, and laptops to consumers and businesses worldwide. All systems are completely customisable on their website along with a vast offering of clean-pulled, tested components and enterprise replacement parts.
| EliteDesk 800 G2 | Lenovo M93 | AWOW AK41 | |
|---|---|---|---|
| Type | Tiny Desktop PC | Tiny Desktop PC | Mini PC |
| Processor | Intel i5-6500T 2.50 GHz (Turbo 3.10 GHz) 4 cores and 4 threads | Intel i5-4590T 2.00 GHz (Turbo 3.00 GHz) 4 cores and 4 threads | Intel Celeron J4115 1.80GHz (Turbo 2.5 GHz) 4 cores and 4 threads |
| Chipset | Intel Skylake | Intel Haswell | Intel Gemini Lake |
| Memory | 16GB DDR3 (2133 MHz) | 16GB DDR3 (1600 MHz) | 8GB DDR4 (2133 MHz) |
| Graphics | Intel HD Graphics 530 | Intel HD Graphics 4600 | Intel UHD Graphics 605 |
| Disk | 256GB Samsung NVMe SSD | 240GB Crucial SSD | 128GB Foresee NVMe SSD |
| AWOW NYI3 | Gigabyte BXBT-1900 | Asus UX305FA | |
|---|---|---|---|
| Type | Mini PC | Mini PC | Laptop |
| Processor | Intel Core i3-5005U 2.00GHz 2 cores 4 threads | Intel Celeron J1900 2.00GHz (Turbo 2.416 GHz) 4 cores 4 threads | Intel Core M-5Y10c 0.8GHz (Turbo 2.00GHz) 2 cores 4 threads |
| Chipset | Intel Broadwell | Intel Atom Z36xxx/Z37xxx | Intel Broadwell-U-OPI |
| Memory | 8GB DDR4 (1600 MHz) | 4GB DDR3 (1600 MHz) | 8GB DDR3 (1866 MHz) |
| Graphics | Intel HD Graphics 5500 | Intel HD 2GB | Intel HD Graphics 5300 |
| Disk | 128GB Kingston NVMe | 250GB Samsung SSD 860 | 128GB SanDisk SSD |
