SerialTest is a communication testing and debugging application for serial ports, Bluetooth connections and network sockets. It brings together data transmission, reception, real-time plotting and file transfer in a single graphical interface.
The application is particularly useful when developing firmware or investigating communication problems with external hardware. Users can configure a connection, inspect incoming traffic and transmit commands while observing the response. It also accommodates situations where the same hardware communicates through different interfaces during development and testing.
SerialTest organizes its functionality into separate panels for connections, data, plotting, controls and file transfers. These can be arranged together or displayed in separate windows. The plotting interface is useful for following changing sensor measurements, while the control panel makes it easier to repeat commonly used commands without repeatedly entering the same data.
This is free and open source software.
Key Features
- Serial port configuration includes baud rate, data bits, stop bits, parity and flow control, with settings that can be changed during a session.
- Provides direct control of DTR and RTS signals and displays the state of CTS, DSR, DCD and RI signals.
- Bluetooth SPP client and server modes, including support for multiple connected clients and configurable service UUIDs.
- Bluetooth Low Energy client mode for examining services, characteristics and descriptors and selecting receive/transmit characteristics.
- TCP client and server connections, with IPv4/IPv6 support, configurable listening interfaces and reusable connection profiles.
- UDP communication with IPv4/IPv6 support and the ability to change remote addresses and ports during a session.

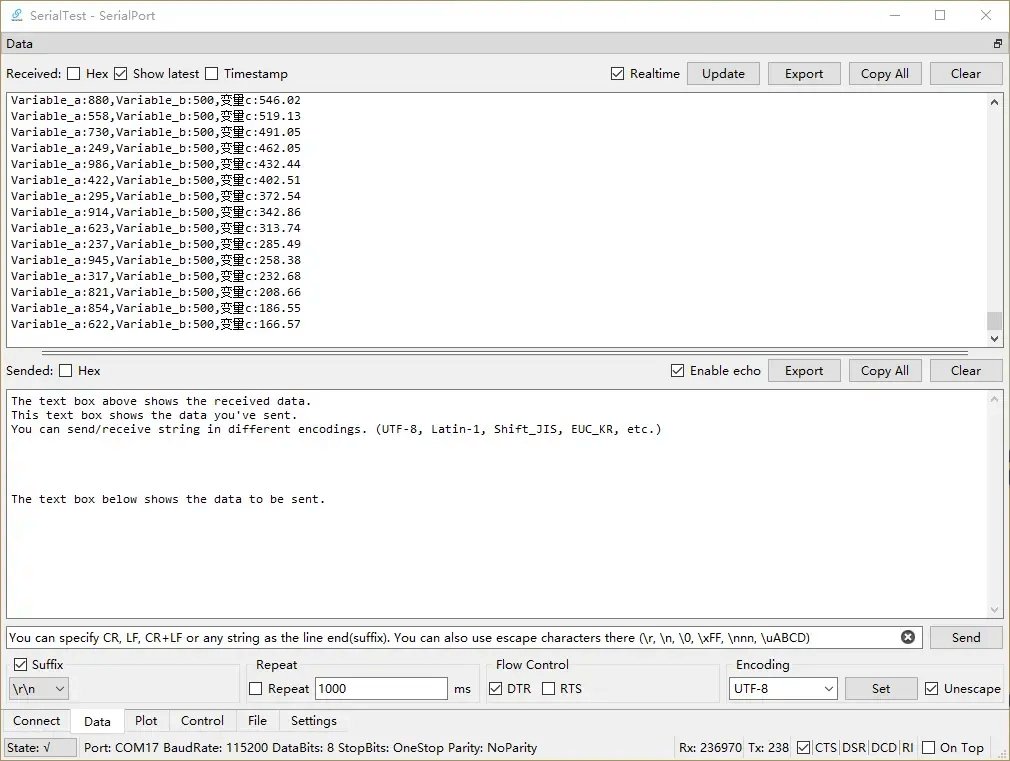

- Data panel with hexadecimal display, receive timestamps, packet separation by timeout, selectable character encodings and raw-data export.
- Real-time plotter supporting up to 99 graphs, customizable legends, multiple X-axis modes, scrolling, panning and the ability to hold the display on earlier samples.
- Customizable control panel with one-click transmission shortcuts, numeric sliders, prefixes, suffixes and importable settings.
- File transmission tools with CRC32 checksums, transfer throttling and configurable receive limits.
- Configurable panel layouts, detachable windows, themes and importable application settings.
- Cross-platform support – runs on Linux, macOS, Windows, and Android.
Website: github.com/wh201906/SerialTest
Support:
Developer: wh201906
License: GNU General Public License v3.0

SerialTest is written in C++. Learn C++ with our recommended free books and free tutorials.
