This is a multi-part blog looking at a Raspberry Pi 5 running Linux as a desktop computer.
I previously looked at raspi-config, a useful tool that comes installed with Raspberry Pi OS. But it’s not the only configuration tool available for this single board computer.
PiGro is a free and open source system configuration tool that’s best installed using Pi-Apps. I’ll be exploring Pi-Apps in the next article in this series. PiGro is licensed under the GNU General Public License v3.0.
The purpose of the tool is to streamline the process of managing all your Raspberry Pi settings from one convenient location. Besides the Raspberry Pi OS, it also supports Ubuntu, Ubuntu MATE, Rhino Linux and MX Linux.

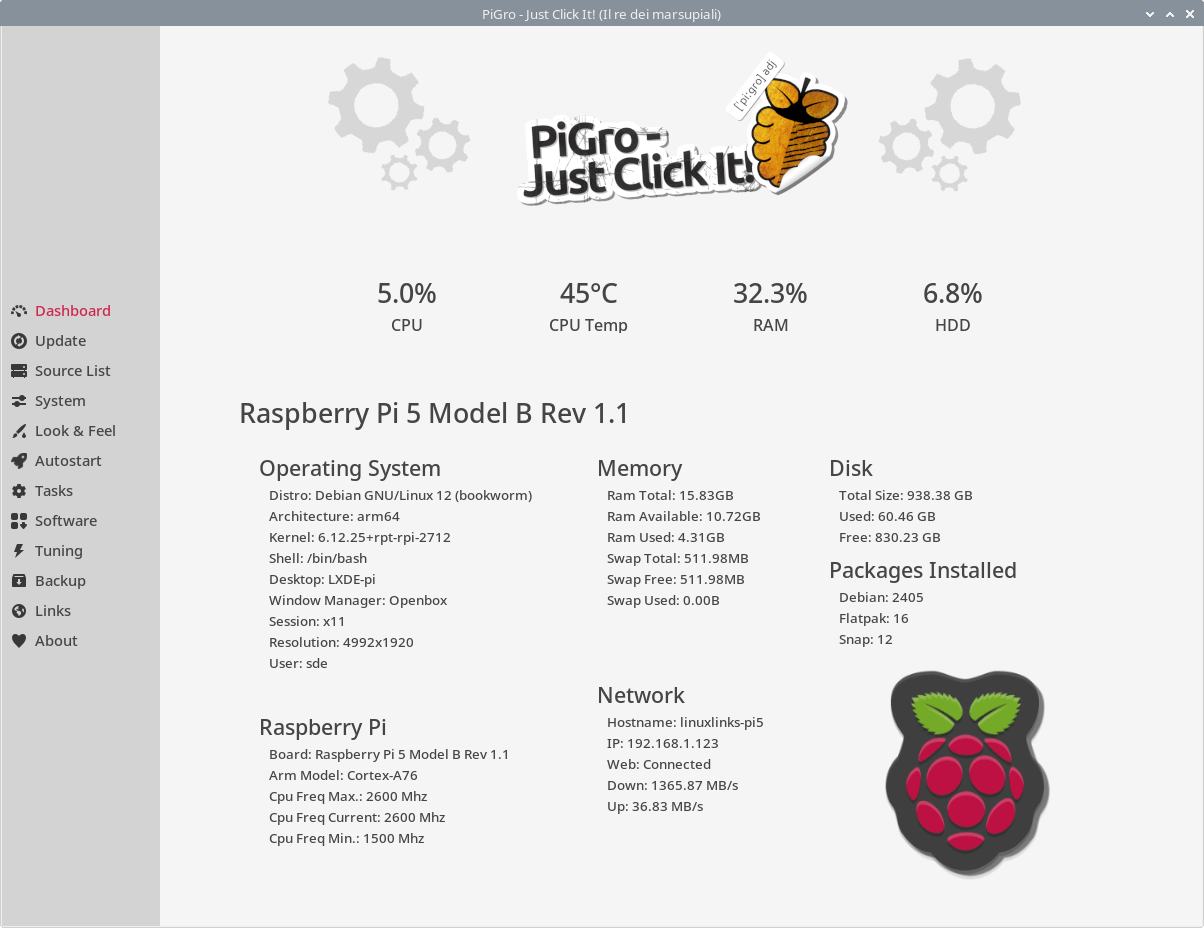

Here’s the opening pane. It’s a dashboard giving live updates of CPU usage, CPU temperature, RAM usage, hard disk usage, together with more information about the key components of the system.
A few notes about my configuration. While Raspberry Pi OS uses Wayland by default, I switched over to X11 as some of my preferred software tools have issues with Wayland.
I’m running two monitors. The tool says the resolution is 4992×1920. My setup has the Pi 5 connected to 2 monitors, one with 1920×1080 resolution, the other 3072×1920. You might also notice the Cpu Freq Max is 2600 Mhz, as I’m slightly overclocking this machine. The 16GB Pi 5 is combined with a 1TB NVMe.
Pages in this article:
Page 1 – Introduction / Dashboard
Page 2 – Update
Page 3 – Source List
Page 4 – System
Page 5 – Look & Feel
Page 6 – Autostart
Page 7 – Tasks
Page 8 – Software
Page 9 – Tuning
Page 10 – Backup
