Power Consumption With CPU Stressed

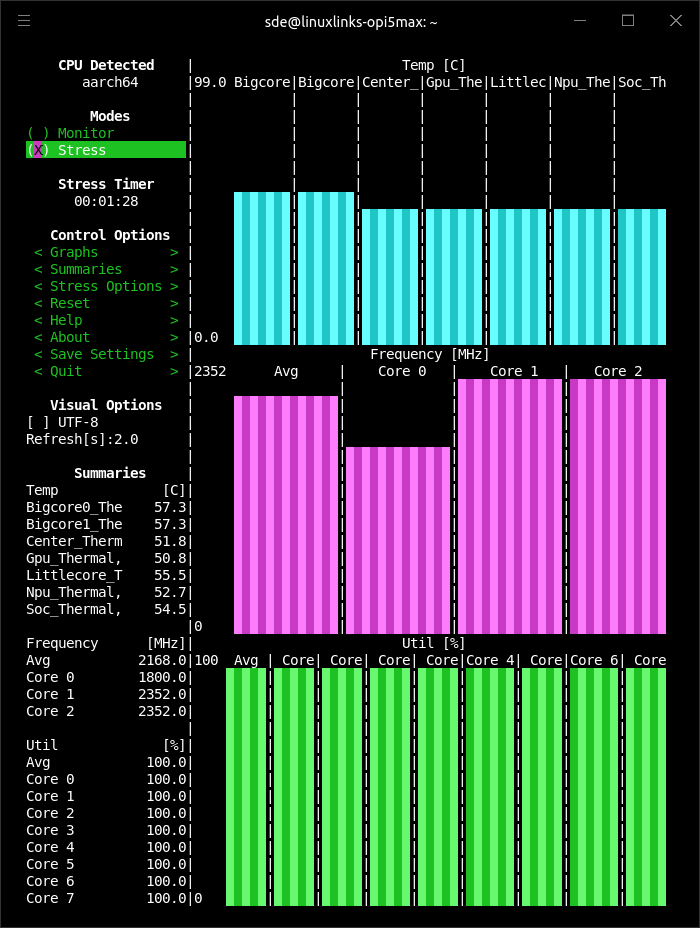

I’m using s-tui to stress the CPU, which in turn uses the stress tool.
I can stress the CPU by changing the mode from monitor to stress. Here are the results for each machine.

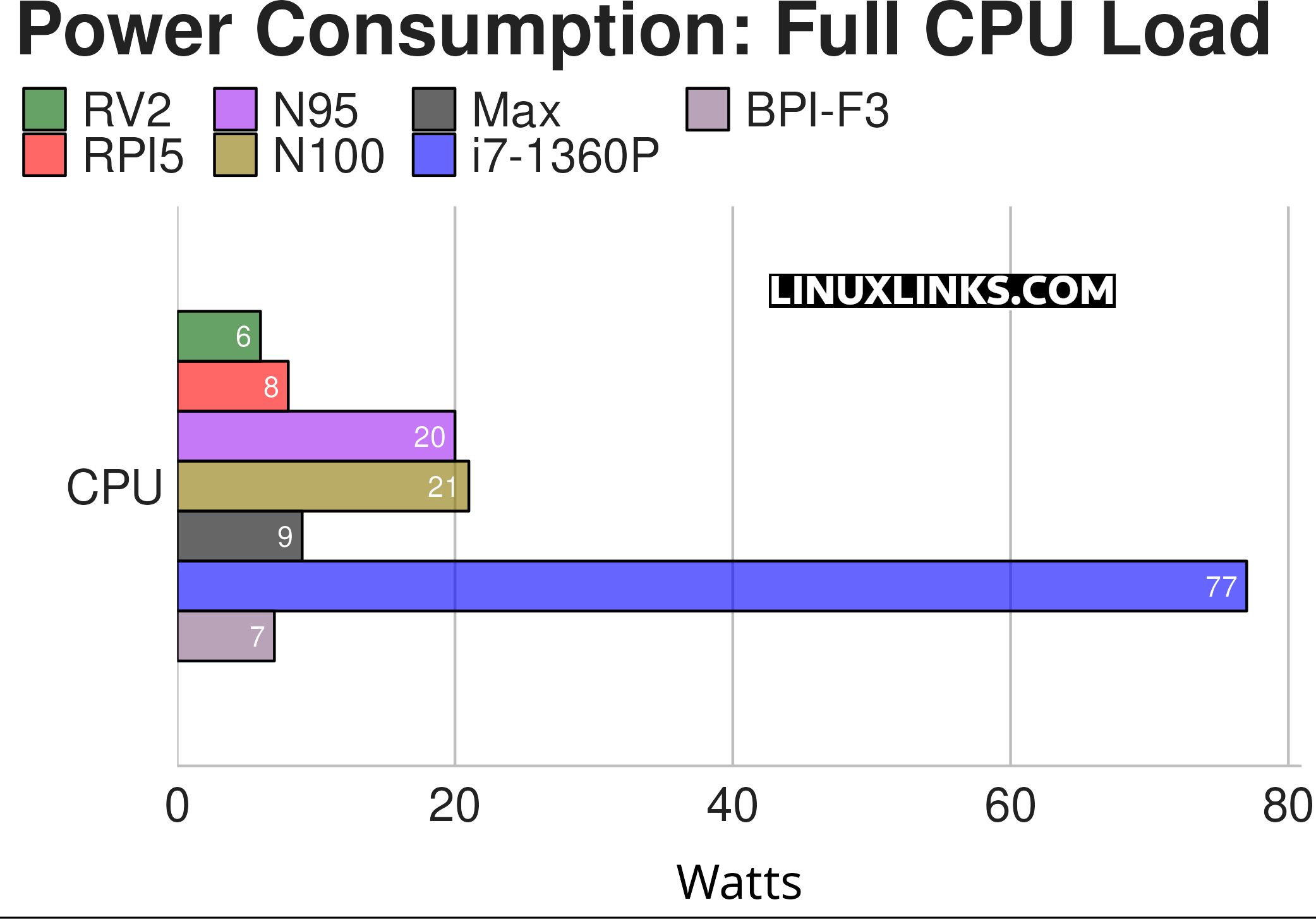

As the chart illustrates, the Orange Pi 5 Max uses slightly more power than the Orange Pi RV2 and the Raspberry Pi 5, but it’s faster than either machine. Another impressive result.
Power usage figures are higher if other system components (GPU, disk etc) are also stressed. The chart reflects power consumption stressing the CPU only.
