WiFi Performance
I generally prefer network connections over ethernet rather than Wi-Fi.
But Wi-Fi does has some advantages over ethernet. There’s no wire clutter, and you can connect anywhere in your home. Almost all modern devices can connect to Wi-Fi from desktops to smartphones. And you can have many devices connected and streaming simultaneously.
To test typical day-to-day performance, I located the Pironman 5 on a different floor to the router. That’s intended to mirror a fairly representative setup for home Wi-Fi systems where it’s not convenient to locate a machine fairly close to the router.
Here are performance statistics using the iperf utility. The local machine (IP 192.168.1.206) is connected to the router via wired ethernet.
The results are in line for expectations given that the Raspberry Pi 5 only offers WiFi5 2.4/5.0. The Pironman’s metal case did reduce WiFi bandwidth transfer rates by about 20%.

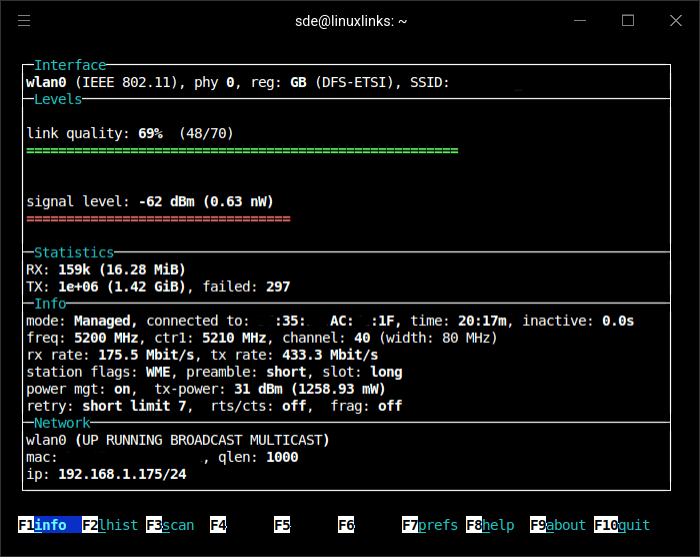

The Pi 5 is connecting at the 5 GHz band, as confirmed by wavemon’s output below.
