In this test, I used each machine over many days performing a variety of general desktop tasks including, but not limited, to web surfing, email, compiling source code, watching video, and listening to music.

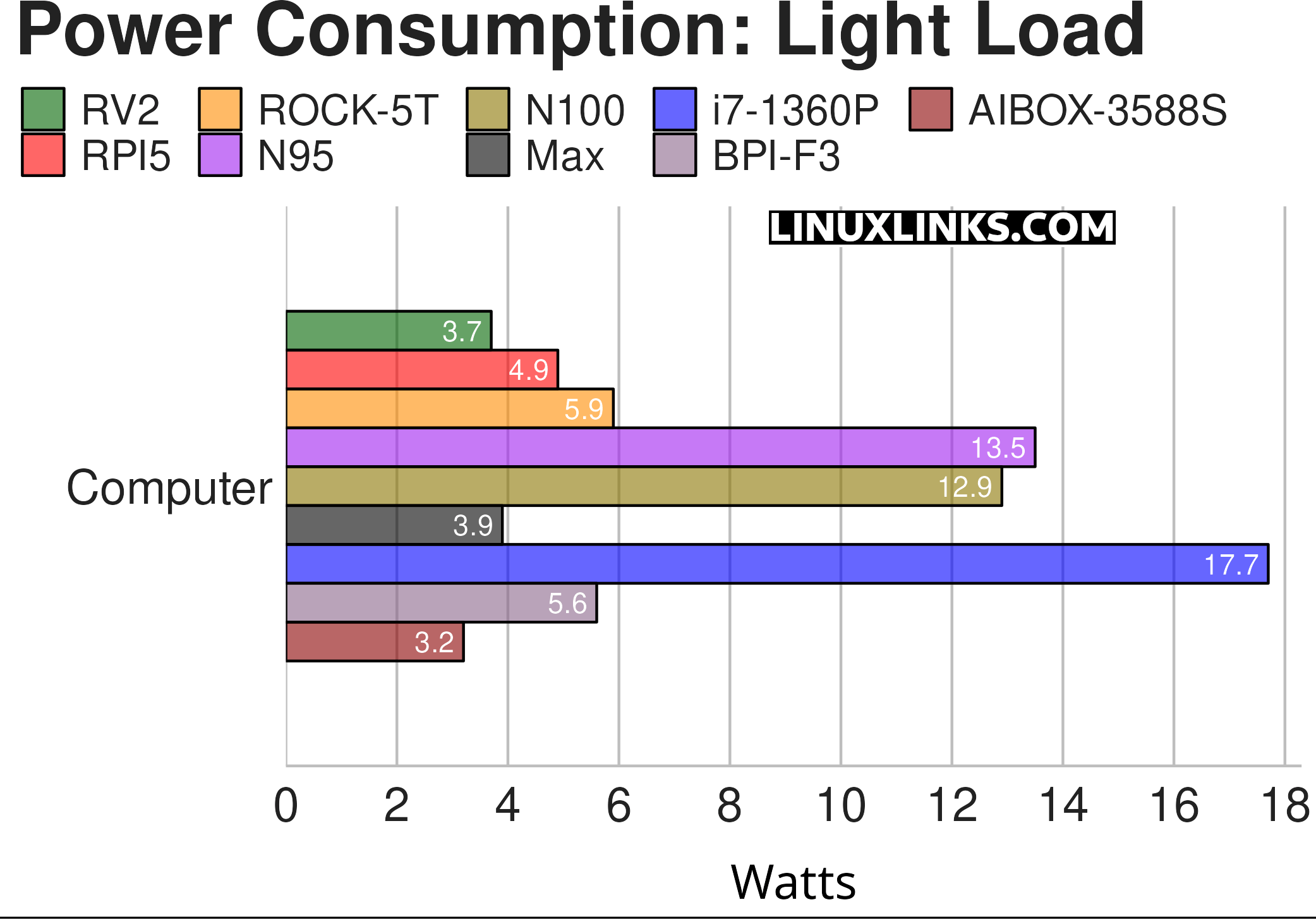

The chart shows the power consumption of each machine. The figures are the power draw for the machine, not just the CPU.
The ROCK 5T consumes slightly more than the other ARM and RISC-V based boards, but bear in mind it’s much quicker than the R2S, RV2, and BPI-F3 SBCs.
Notes about the chart:
- The tasks do not include any activities that are GPU intensive such as gaming, running locally-hosted AI apps, video recording / live streaming etc.
- While the tests access software that uses the GPU (such as XOrg/Wayland), the GPU power consumption is minimal.
- All the machine use onboard graphics.
- None of the machines have power management functionality built into the BIOS.
- The DreamQuest and Intel Mini PCs are using the Balanced CPU governor. The Radxa ROCK 5T, Firefly AIBOX-3588S, Orange Pi 5 Max, Orange Pi RV2, Raspberry Pi 5, and Banana Pi BPI-F3 are using their default settings with no overclocking/underclocking.
- WiFi and Bluetooth are enabled on all machines with the exception of the Orange Pi R2S and the Firefly AIBOX-3588S which don’t have either.
- The Radxa ROCk 5T is running Radxa OS (a customized version of Debian 12 with KDE Plasma). The Firefly AIBOX-3588S is running Debian 12 (Bookworm), the Orange Pi 5 Max is running Ubuntu 22.04 (Jammy Jellyfish), while the RV2 is running Ubuntu 24.04.2 (Noble Numbat). The Orange Pi R2S is running Ubuntu Server 24.04. The Pi 5 is running the Raspberry Pi OS (which is based on Debian 12). The Banana Pi BPI-F3 is running Bianbu OS 24.04. The other machines are running Ubuntu 25.04.
- The Orange Pi R2S is not shown in the chart above as it does not have onboard video.
