In this test, I used each machine over many days performing a variety of general desktop tasks including, but not limited, to web surfing, email, compiling source code, watching video, and listening to music.

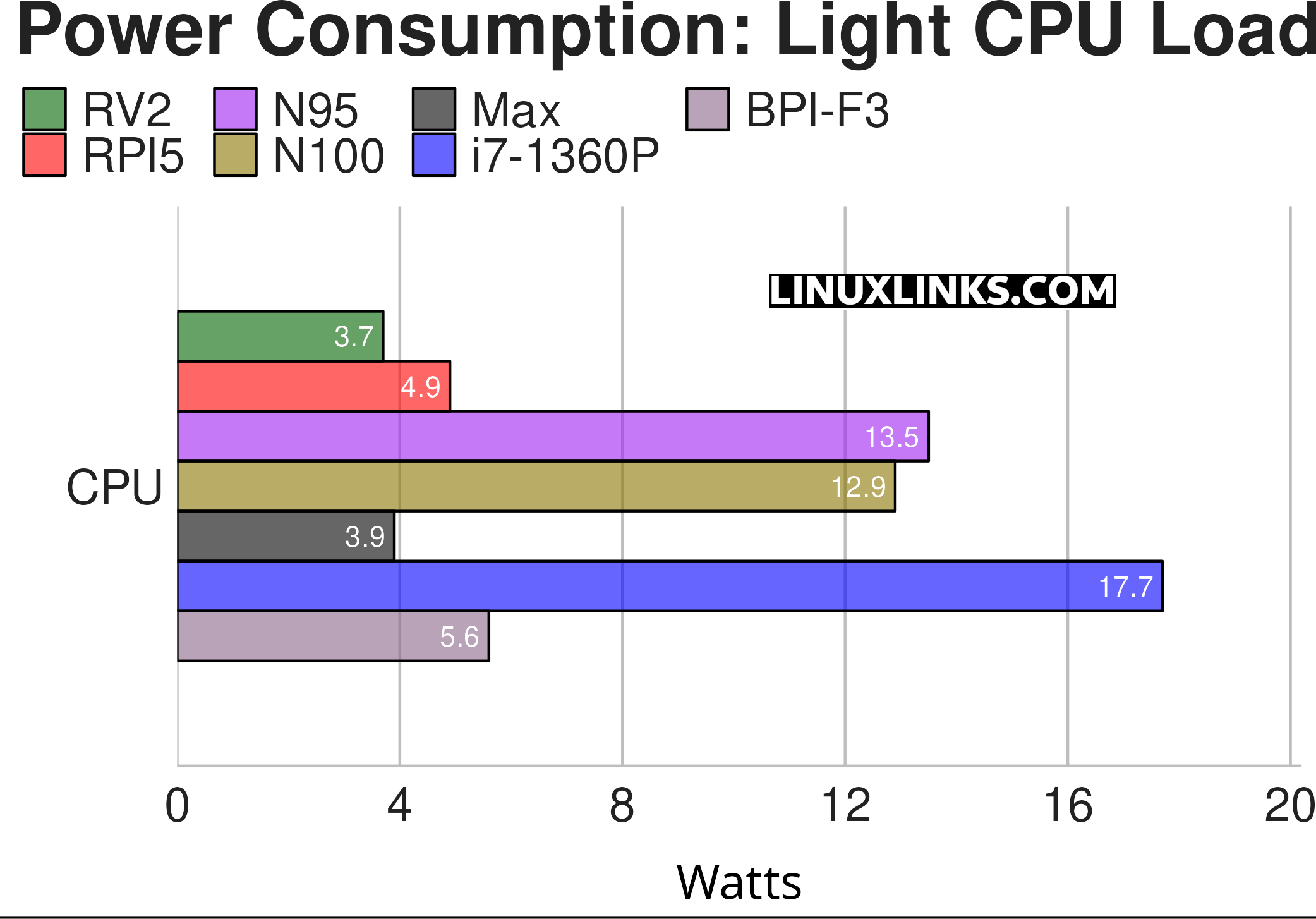

The chart shows the power consumption of each machine. The figures are the power draw for the machine, not just the CPU.
Again a hugely impressive result for the Orange Pi 5 Max. Bear in mind that it’s significantly faster than the Orange Pi RV2, and faster than the Raspberry Pi 5. Yet it’s almost as frugal as the RV2.
Notes about the chart:
- The tasks do not include any activities that are GPU intensive such as gaming, running locally-hosted AI apps, video recording / live streaming etc.
- While the tests access software that uses the GPU (such as Wayland), the GPU power consumption is minimal.
- All the machine use onboard graphics.
- None of the machines have power management functionality built into the BIOS.
- The DreamQuest and Intel Mini PCs are using the Balanced CPU governor. The Orange Pi 5 Max, Orange Pi RV2 and the Raspberry Pi 5 are using their default settings with no overclocking/underclocking.
- WiFi and Bluetooth are enabled on all machines.
- The Orange Pi 5 Max is running Ubuntu 22.04.2, while the Orange Pi RV2 is running Ubuntu 24.04.2 (Noble Numbat) The Raspberry Pi 5 is running the Raspberry Pi OS (which is based on Debian 12). The other machines are running Ubuntu 25.04.
