I’m using s-tui to stress the CPU, which in turn uses the stress tool.

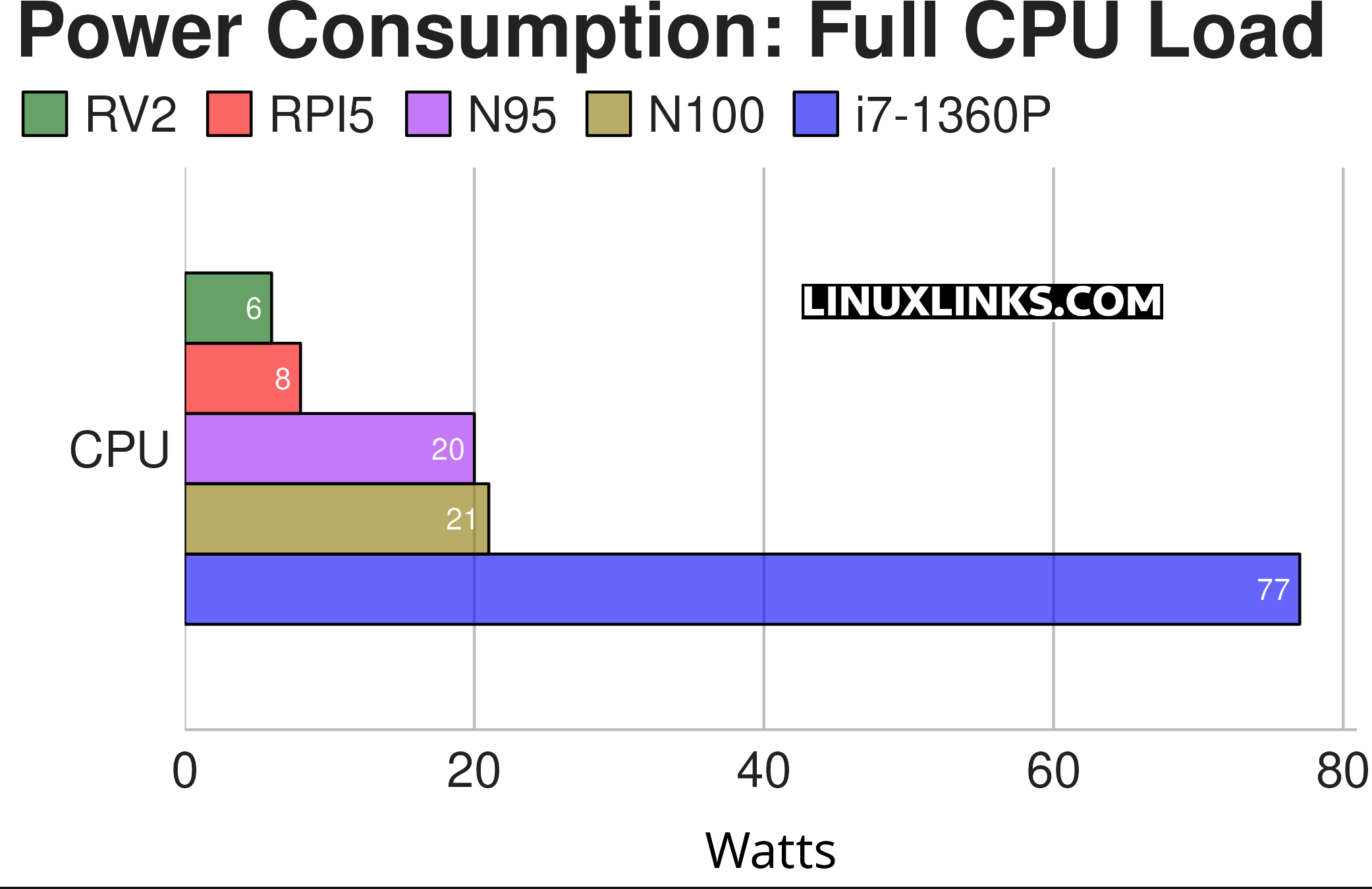

I can stress the CPU by changing the mode from monitor to stress. Here are the results for each machine.
As the chart illustrates, the Orange Pi RV2 uses slightly less power than the Raspberry Pi 5, although the latter is much faster.
Power usage figures are higher if other system components (GPU, disk etc) are also stressed. The chart reflects power consumption stressing the CPU only.
