This is the third article in a new series looking at the latest piece of kit from the folks at Orange Pi. It’s the Orange Pi 6 Plus development board.
This board is very different to the single-board computers I’ve previously looked at. For example, it has a 12 core 64 bit ARMv9 processor with a total computing power of 45 TOPS (CPU/GPU/NPU).
The board has the CIX CD8180/CD8160 SoC. The 12-core processor has a quad-core Cortex-A720 large core, quad-core Cortex-A720 medium core, and quad-core Cortex-A520 small core.
lscpu shows the maximum clock speed of the cores. As you can see, the large core (the first two cores listed below) have a maximum clock frequency of 2600 MHz, the next four 1800 MHz, the next two 2300 MHz, the next two 2200 MHz, and the final two cores have a maximum clock frequency of 2500 MHz.
In the second article in this series I ran a series of benchmarks on the machine using all the cores. But let’s see how the individual cores perform on a couple of the benchmarks.
I’ve run the benchmarks on CPU 0, 2, 6, 8, and 10 as they have unique maximum clock speeds (i.e. CPU 1 has the same maximum clock speed as CPU 0).

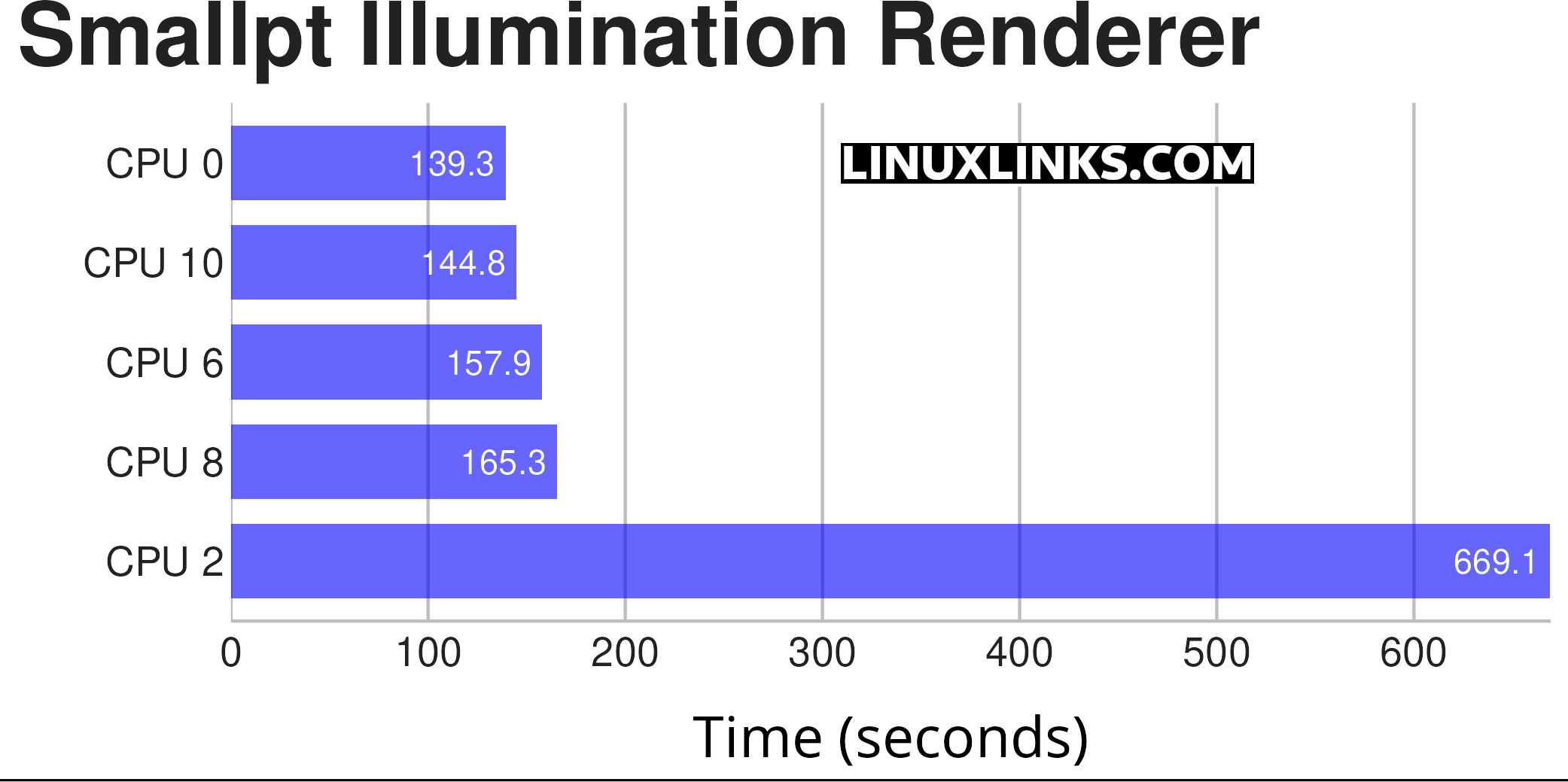

taskset -c 0 phoronix-test-suite benchmark smallpt
taskset -c 2 phoronix-test-suite benchmark smallpt
taskset -c 6 phoronix-test-suite benchmark smallpt
taskset -c 8 phoronix-test-suite benchmark smallpt
taskset -c 10 phoronix-test-suite benchmark smallpt
A lower time indicates better performance.

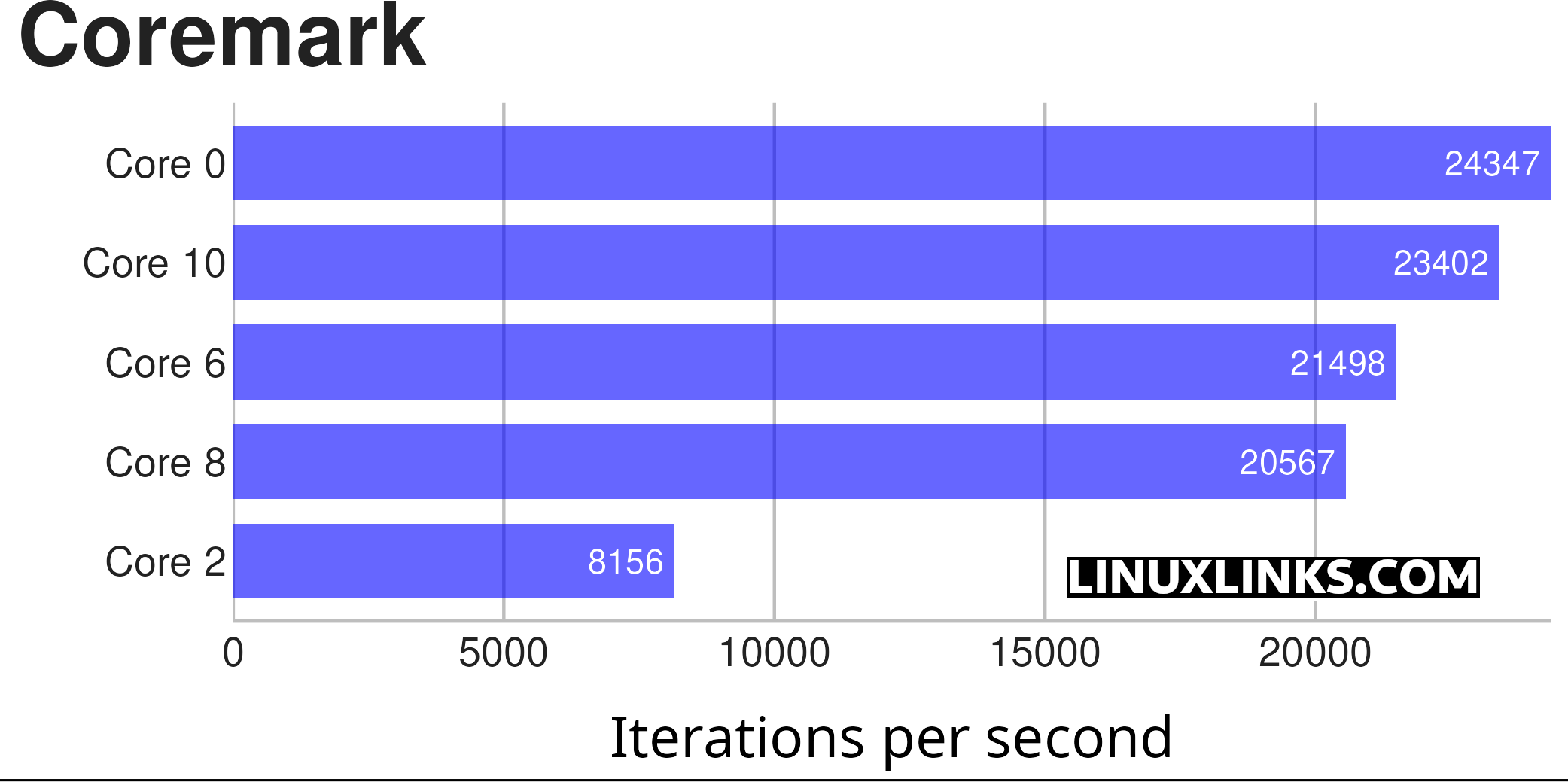

taskset -c 0 phoronix-test-suite benchmark coremark
taskset -c 2 phoronix-test-suite benchmark coremark
taskset -c 6 phoronix-test-suite benchmark coremark
taskset -c 8 phoronix-test-suite benchmark coremark
taskset -c 10 phoronix-test-suite benchmark coremark
A higher number of iterations per second indicates better performance.
What do I infer from the above charts? I think the results are very interesting. 8 out of the 12 cores offer similar performance. In other words the quad-core Cortex-A720 large core and quad-core Cortex-A720 medium core don’t have a massive speed difference.
What’s particularly noteworthy is quad-core Cortex-A520 small core performance is much worse. They are CPU 2 (and 3, 4, 5) with the lowest maximum clock speed of 1800 MHz. And their performance is much slower than the clock speed might suggest.
