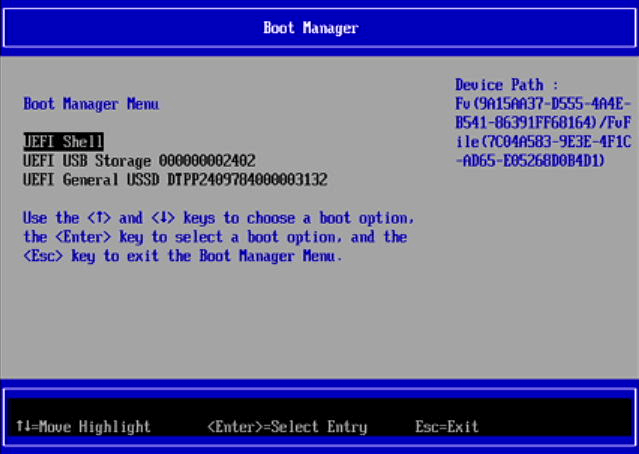

Boot Manager
Besides booting to a UEFI shell, the next two entries are more interesting.
The UEFI USB Storage is the onboard microSD card. I have the Debian 12 operating system installed on the microSD.
The bottom entry starting UEFI General USSD device is a fast USB external storage which has Ubuntu 24.04 LTS installed. So if I select that line and press Enter, I’ll boot into Ubuntu.
These entries are automatically created and mean that it’s easy to experiment with the Pi 6 Plus without affecting my main image. The USB external storage device is, of course, not hardware produced by Orange Pi.
Next page: Page 4 – Boot Maintenance Manager
