In this test I used each machine over many days performing a variety of general desktop tasks including, but not limited, to web surfing, email, compiling source code, watching video, listening to music, and running virtualized machines.

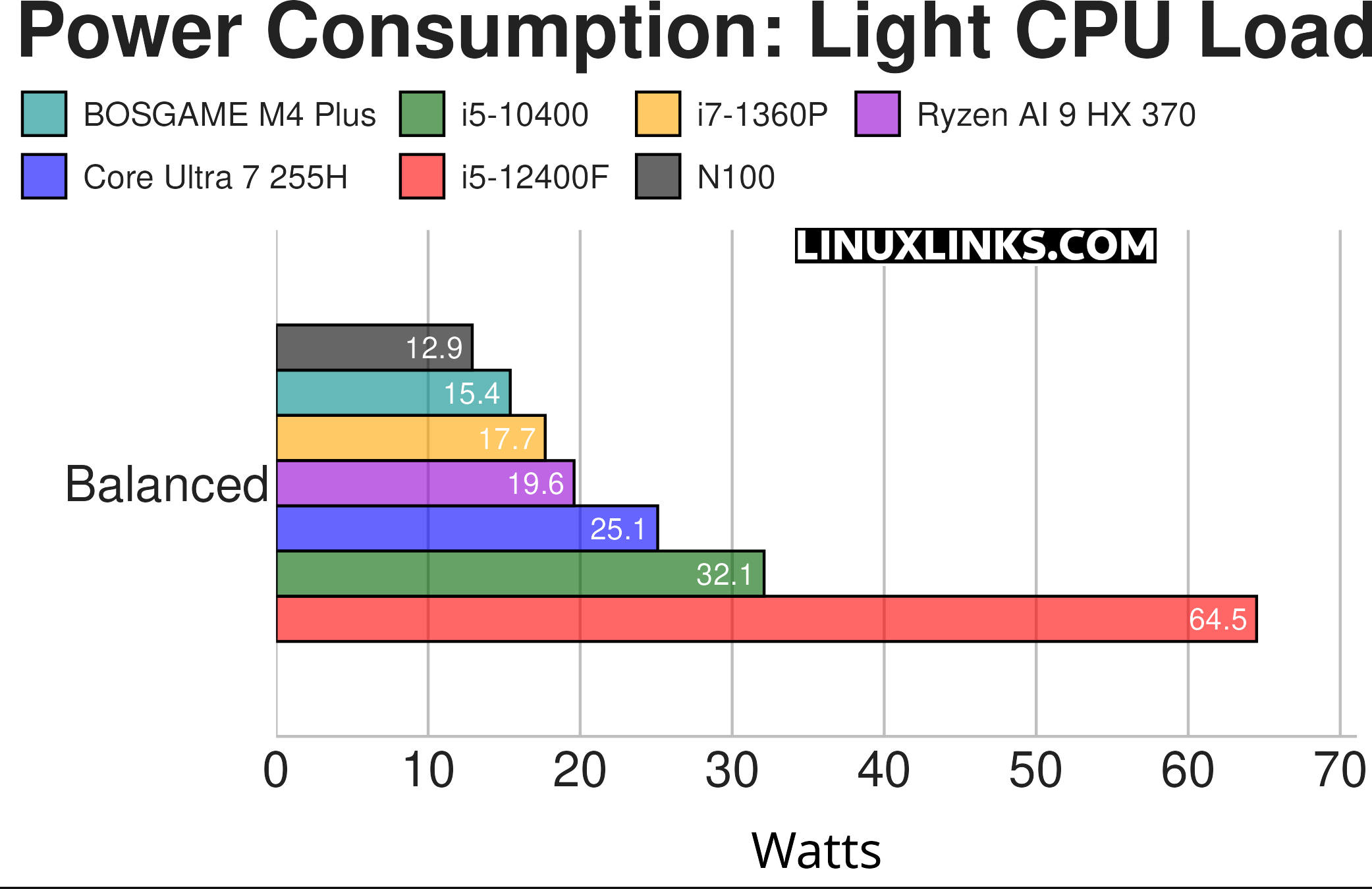

The chart shows the power consumption of each machine. The figures are the power draw for the machine, not just the CPU.
Another impressive result for the BOSGAME machine considering that it’s much faster than the N100 machine.
Notes about the chart:
- The tasks do not include any activities that are GPU intensive such as gaming, running locally-hosted AI apps, video recording / live streaming etc.
- While the tests access software that uses the GPU (such as Xorg), the GPU power consumption is minimal (with the exception of the i5-12400F as the machine’s dedicated graphics card draws 21W at idle).
- Two screens are used on each machine.
- The i5-12400F machine hosts a dedicated graphics card, whereas the other machines all use onboard graphics.
- The Balanced CPU governor is used.
- The machines are running Ubuntu 25.04 with the exception of the Minisforum machine which is running Manjaro.
Next page: Page 3 – Power Consumption With CPU Stressed
Pages in this article:
Page 1 – Power Consumption With System Idle
Page 2 – Power Consumption With Light Usage
Page 3 – Power Consumption With CPU Stressed
Page 4 – Electricity Costs
Complete list of articles in this series:
| BOSGAME M4 Plus Mini PC | |
|---|---|
| Introduction | Introduction to the series and interrogation of the machine |
| Benchmarks | Benchmarking the BOSGAME M4 Plus |
| Power | Testing and comparing the power consumption |
| Cores | AMD Ryzen 9 7940HS |
| Noise | Comparing the machine's noise with other mini PCs |
